The A275F is a high density version of the Amptek A275 Pulse Amplifier.

The A275F features a Single In-line Package (SIP).

The A275F is offered in two versions:

  • A275FC – Compensated, for gain less than 10
  • A275FN – Not Compensated, for gain greater than 10

A275F Pin Configuration

Pin 1 – Input
Pin 2 + Input
Pin 3 Ground and Case
Pin 4 -Vs
Pin 5 +Vs
Pin 6 Output

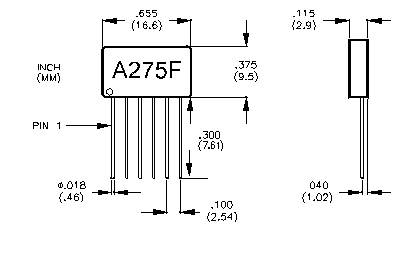

a275f mechanical



Weight: 1.6 g with leads cut to 0.100 inch (2.5 mm).

Please refer to the A275 specifications for further information.
